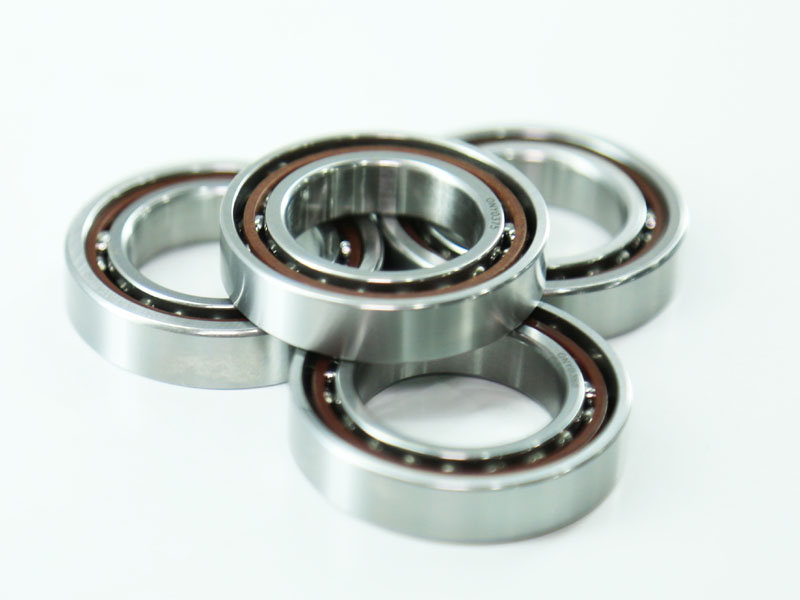

70
查看本系列其他型號：
我們可以通過電話幫您找到匹配的產品
請撥打：0371-56535163
咨詢答疑 咨詢訂購性能特點
技術參數
| ZZC | 外形尺寸 | 額定載荷 | 極限轉速 | 重量 | 額定載荷 | 極限轉速 | |||||
| d | D | B | rsmin | r1smin | a | Cr | Cor | 脂 | 油 | Kg | |
| mm | ≈ | KN | r/min | ≈ | |||||||
7000C | 10 | 26 | 8 | 0.30 | 0.15 | 6 | 4.0 | 2.4 | 67000 | 100000 | 0.02 |
7000AC | 10 | 26 | 8 | 0.30 | 0.15 | 8 | 3.8 | 2.3 | 60000 | 90000 | 0.02 |
7001C | 12 | 28 | 8 | 0.30 | 0.15 | 7 | 5.0 | 3.0 | 60000 | 90000 | 0.02 |
7001AC | 12 | 28 | 8 | 0.30 | 0.15 | 9 | 4.8 | 2.8 | 56000 | 85000 | 0.02 |
7002C | 15 | 32 | 9 | 0.30 | 0.15 | 8 | 5.3 | 3.3 | 50000 | 75000 | 0.03 |
7002AC | 15 | 32 | 9 | 0.30 | 0.15 | 10 | 5.1 | 3.1 | 45000 | 67000 | 0.03 |
7003C | 17 | 35 | 10 | 0.30 | 0.15 | 8 | 6.7 | 4.9 | 45000 | 67000 | 0.04 |
7003AC | 17 | 35 | 10 | 0.30 | 0.15 | 11 | 6.4 | 4.7 | 40000 | 60000 | 0.04 |
7004C | 20 | 42 | 12 | 0.60 | 0.15 | 10 | 9.6 | 6.3 | 38000 | 56000 | 0.06 |
7004AC | 20 | 42 | 12 | 0.60 | 0.15 | 13 | 9.2 | 6.0 | 34000 | 50000 | 0.06 |
7005C | 25 | 47 | 12 | 0.60 | 0.15 | 11 | 12.9 | 8.7 | 34000 | 50000 | 0.07 |
7005AC | 25 | 47 | 12 | 0.60 | 0.15 | 14 | 12.3 | 8.3 | 30000 | 45000 | 0.07 |
7006C | 30 | 55 | 13 | 1.00 | 0.30 | 12 | 15.7 | 11.6 | 28000 | 43000 | 0.11 |
7006AC | 30 | 55 | 13 | 1.00 | 0.30 | 17 | 14.9 | 10.9 | 24000 | 38000 | 0.11 |
7007C | 35 | 62 | 14 | 1.00 | 0.30 | 13 | 19.3 | 17.5 | 20000 | 34000 | 0.15 |
7007AC | 35 | 62 | 14 | 1.00 | 0.30 | 18 | 18.3 | 16.6 | 19000 | 32000 | 0.15 |
7008C | 40 | 68 | 15 | 1.00 | 0.30 | 15 | 19.9 | 19.1 | 19000 | 32000 | 0.19 |
7008AC | 40 | 68 | 15 | 1.00 | 0.30 | 20 | 18.9 | 18.2 | 17000 | 28000 | 0.19 |
7009C | 45 | 75 | 16 | 1.00 | 0.30 | 16 | 26.7 | 25.3 | 17000 | 28000 | 0.23 |
7009AC | 45 | 75 | 16 | 1.00 | 0.30 | 22 | 25.4 | 24.1 | 16000 | 26000 | 0.23 |
7010C | 50 | 80 | 16 | 1.00 | 0.30 | 17 | 27.6 | 27.5 | 16000 | 26000 | 0.25 |
7010AC | 50 | 80 | 16 | 1.00 | 0.30 | 23 | 26.2 | 26.2 | 15000 | 24000 | 0.25 |
7011C | 55 | 90 | 18 | 1.10 | 0.60 | 19 | 36.7 | 37.1 | 14000 | 22000 | 0.37 |
7011AC | 55 | 90 | 18 | 1.10 | 0.60 | 26 | 34.8 | 35.3 | 13000 | 20000 | 0.37 |
7012C | 60 | 95 | 18 | 1.10 | 0.60 | 19 | 37.8 | 40.0 | 14000 | 22000 | 0.39 |
7012AC | 60 | 95 | 18 | 1.10 | 0.60 | 27 | 35.8 | 38.0 | 12000 | 19000 | 0.39 |
7013C | 65 | 100 | 18 | 1.10 | 0.60 | 20 | 38.9 | 42.9 | 13000 | 20000 | 0.42 |
7013AC | 65 | 100 | 18 | 1.10 | 0.60 | 28 | 36.8 | 40.7 | 11000 | 18000 | 0.42 |
7014C | 70 | 110 | 20 | 1.10 | 0.60 | 22 | 49.9 | 55.5 | 12000 | 19000 | 0.59 |
7014AC | 70 | 110 | 20 | 1.10 | 0.60 | 31 | 47.2 | 52.7 | 10000 | 17000 | 0.59 |
7015C | 75 | 115 | 20 | 1.10 | 0.60 | 23 | 51.3 | 59.2 | 11000 | 18000 | 0.62 |
7015AC | 75 | 115 | 20 | 1.10 | 0.60 | 32 | 48.5 | 56.2 | 9500 | 16000 | 0.62 |
7016C | 80 | 125 | 22 | 1.10 | 0.60 | 25 | 61.6 | 70.4 | 10000 | 17000 | 0.83 |
7016AC | 80 | 125 | 22 | 1.10 | 0.60 | 35 | 58.3 | 66.9 | 9000 | 15000 | 0.83 |
7017C | 85 | 130 | 22 | 1.10 | 0.60 | 25 | 63.3 | 75.0 | 9500 | 16000 | 0.87 |
7017AC | 85 | 130 | 22 | 1.10 | 0.60 | 36 | 59.9 | 71.3 | 8500 | 14000 | 0.87 |
7018C | 90 | 140 | 24 | 1.50 | 0.60 | 27 | 66.9 | 84.0 | 9000 | 15000 | 1.18 |
7018AC | 90 | 140 | 24 | 1.50 | 0.60 | 39 | 63.2 | 79.7 | 8000 | 13000 | 1.18 |
7019C | 95 | 145 | 24 | 1.50 | 0.60 | 28 | 79.1 | 97.6 | 8500 | 14000 | 1.2 |
7019AC | 95 | 145 | 24 | 1.50 | 0.60 | 40 | 74.8 | 92.7 | 7500 | 12000 | 1.2 |
7020C | 100 | 150 | 24 | 1.50 | 0.60 | 29 | 81.2 | 103.3 | 8000 | 13000 | 1.25 |
7020AC | 100 | 150 | 24 | 1.50 | 0.60 | 41 | 76.7 | 98.0 | 7000 | 11000 | 1.25 |
7021C | 105 | 160 | 26 | 2.00 | 1.00 | 31 | 93.9 | 118.2 | 7500 | 12000 | 1.58 |
7021AC | 105 | 160 | 26 | 2.00 | 1.00 | 44 | 88.8 | 112.2 | 7000 | 11000 | 1.58 |
7022C | 110 | 170 | 28 | 2.00 | 1.00 | 33 | 110.4 | 139.8 | 7000 | 11000 | 1.97 |
7022AC | 110 | 170 | 28 | 2.00 | 1.00 | 47 | 104.4 | 132.8 | 6700 | 10000 | 1.97 |
7024C | 120 | 180 | 28 | 2.00 | 1.00 | 34 | 112.7 | 148.7 | 7000 | 11000 | 2.11 |
7024AC | 120 | 180 | 28 | 2.00 | 1.00 | 49 | 106.5 | 141.1 | 6700 | 10000 | 2.11 |
7026C | 130 | 200 | 33 | 2.00 | 1.00 | 39 | 144.8 | 190.8 | 6700 | 10000 | 3.18 |
7026AC | 130 | 200 | 33 | 2.00 | 1.00 | 55 | 136.8 | 181.0 | 6000 | 9000 | 3.18 |
7028C | 140 | 210 | 33 | 2.00 | 1.00 | 40 | 148.7 | 202.6 | 6000 | 9000 | 3.37 |
7028AC | 140 | 210 | 33 | 2.00 | 1.00 | 57 | 140.4 | 192.2 | 5600 | 8500 | 3.37 |
7030C | 150 | 225 | 35 | 2.10 | 1.10 | 43 | 168.4 | 232.5 | 5600 | 8500 | 4.1 |
7030AC | 150 | 225 | 35 | 2.10 | 1.10 | 61 | 159.1 | 220.6 | 5000 | 7500 | 4.1 |
7032C | 160 | 240 | 38 | 2.10 | 1.10 | 46 | 189.1 | 264.5 | 5000 | 7500 | 5.07 |
7032AC | 160 | 240 | 38 | 2.10 | 1.10 | 66 | 178.6 | 251.0 | 4800 | 7000 | 5.07 |
7034C | 170 | 260 | 42 | 2.10 | 1.10 | 50 | 205.6 | 299.3 | 4800 | 7000 | 6.9 |
7034AC | 170 | 260 | 42 | 2.10 | 1.10 | 71 | 194.2 | 284.0 | 4300 | 6300 | 6.9 |
7036C | 180 | 280 | 46 | 2.10 | 1.10 | 54 | 229.5 | 352.1 | 4500 | 6700 | 9.21 |
7036AC | 180 | 280 | 46 | 2.10 | 1.10 | 77 | 216.8 | 334.1 | 4000 | 6000 | 9.21 |
7038C | 190 | 290 | 46 | 2.10 | 1.10 | 55 | 235.1 | 370.8 | 4300 | 6300 | 9.61 |
7038AC | 190 | 290 | 46 | 2.10 | 1.10 | 79 | 222.1 | 351.8 | 3800 | 5600 | 9.61 |
7040C | 200 | 310 | 51 | 2.10 | 1.10 | 60 | 289.1 | 471.4 | 3800 | 5600 | 12.1 |
7040AC | 200 | 310 | 51 | 2.10 | 1.10 | 85 | 273.1 | 447.3 | 3600 | 5300 | 12.1 |
7044C | 220 | 340 | 56 | 3.00 | 1.10 | 66 | 325.3 | 559.4 | 3600 | 5300 | 15.9 |
7044AC | 220 | 340 | 56 | 3.00 | 1.10 | 93 | 307.3 | 530.8 | 3200 | 4800 | 15.9 |
7048C | 240 | 360 | 56 | 3.00 | 1.10 | 68 | 344.2 | 623.6 | 3200 | 4800 | 17 |
7048AC | 240 | 360 | 56 | 3.00 | 1.10 | 98 | 325.1 | 591.7 | 3000 | 4500 | 17 |
